IPv6 - 6to4 Tunnels using IPv4 EIGRP routes

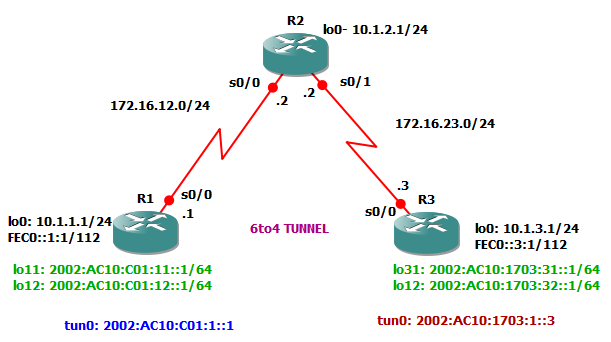

In this lab, configure all routers with IPV6 and IPV4 addresses and establish communication between R1 and R3 using IPv6to4 tunnelling.

Objectives are as follows;

(1) Configure EIGRP for IPV4.

(2) Create a 6to4 tunneling

(3) Configure static IPv6 routes.

To download the completed GNS3 files, get from https://docs.google.com/leaf?id=0B889ogd4ltI2NDU1OTcxOTgtZjgwYS00Y2Q5LWFiZTMtNThjYTk0NTBmMTg0&hl=en&authkey=CPGAn8IE

In R1, configure the following configurations for tunnelling.

interface Tunnel0

 no ip address

 no ip redirects

 ipv6 address 2002:AC10:C01:1::1/64

 tunnel source Serial0/0

 tunnel mode ipv6ip 6to4

For IPv6 routing,

ipv6 unicast-routing

ipv6 route 2002::/16 Tunnel0

ipv6 route FEC0::3:0/112 2002:AC10:1703:1::3

Enabling simple EIGRP routing for IPv4 networks are as follow;

router eigrp 1

 network 10.0.0.0

 network 172.16.0.0

 no auto-summary

-------------

Result of routing in R1 are as follow;

R1#sh ipv6 route

IPv6 Routing Table - 12 entries

Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP

       U - Per-user Static route

       I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary

       O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2

       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2

S   2002::/16 [1/0]

     via ::, Tunnel0

C   2002:AC10:C01:1::/64 [0/0]

     via ::, Tunnel0

L   2002:AC10:C01:1::1/128 [0/0]

     via ::, Tunnel0

C   2002:AC10:C01:11::/64 [0/0]

     via ::, Loopback11

L   2002:AC10:C01:11::1/128 [0/0]

     via ::, Loopback11

C   2002:AC10:C01:12::/64 [0/0]

     via ::, Loopback12

L   2002:AC10:C01:12::1/128 [0/0]

     via ::, Loopback12

L   FE80::/10 [0/0]

     via ::, Null0

C   FEC0::1:0/112 [0/0]

     via ::, Loopback0

L   FEC0::1:1/128 [0/0]

     via ::, Loopback0

S   FEC0::3:0/112 [1/0]

     via 2002:AC10:1703:1::3

L   FF00::/8 [0/0]

     via ::, Null0

-------------------------------------------

R1's IPV6 addressing are as follows;

R1#sh ipv6 int brief

Serial0/0                  [up/up]

Serial0/1                  [administratively down/down]

Serial0/2                  [administratively down/down]

Serial0/3                  [administratively down/down]

Loopback0                  [up/up]

    FE80::9CD7:2EFF:FEF0:99FA

    FEC0::1:1

Loopback9                  [up/up]

Loopback11                 [up/up]

    FE80::9CD7:2EFF:FEF0:99FA

    2002:AC10:C01:11::1

Loopback12                 [up/up]

    FE80::9CD7:2EFF:FEF0:99FA

    2002:AC10:C01:12::1

Tunnel0                    [up/up]

    FE80::AC10:C01

    2002:AC10:C01:1::1

----------------------------------------------------------------------------

In R3,

Enabling for tunnelling are as follows;

ipv6 unicast-routing

 ipv6 address FEC0::3:1/112

 ipv6 address 2002:AC10:1703:31::1/64

 ipv6 address 2002:AC10:1703:32::1/64

 ipv6 address 2002:AC10:1703:1::3/64

 tunnel mode ipv6ip 6to4

ipv6 route 2002::/16 Tunnel0

ipv6 route FEC0::1:0/112 2002:AC10:C01:1::1

------------

IPV6 addressing in R3 are as follows;

R3#sh ipv6 int brief

Serial0/0                  [up/up]

Serial0/1                  [administratively down/down]

Serial0/2                  [administratively down/down]

Serial0/3                  [administratively down/down]

Loopback0                  [up/up]

    FE80::9CD7:2EFF:FEF0:99FA

    FEC0::3:1

Loopback31                 [up/up]

    FE80::9CD7:2EFF:FEF0:99FA

    2002:AC10:1703:31::1

Loopback32                 [up/up]

    FE80::9CD7:2EFF:FEF0:99FA

    2002:AC10:1703:32::1

Tunnel0                    [up/up]

    FE80::AC10:1703

    2002:AC10:1703:1::3

-------------------

IPV6 routing table is as follows;

R3#sh ipv6 route

IPv6 Routing Table - 12 entries

Codes: C - Connected, L - Local, S - Static, R - RIP, B - BGP

       U - Per-user Static route

       I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary

       O - OSPF intra, OI - OSPF inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2

       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2

S   2002::/16 [1/0]

     via ::, Tunnel0

C   2002:AC10:1703:1::/64 [0/0]

     via ::, Tunnel0

L   2002:AC10:1703:1::3/128 [0/0]

     via ::, Tunnel0

C   2002:AC10:1703:31::/64 [0/0]

     via ::, Loopback31

L   2002:AC10:1703:31::1/128 [0/0]

     via ::, Loopback31

C   2002:AC10:1703:32::/64 [0/0]

     via ::, Loopback32

L   2002:AC10:1703:32::1/128 [0/0]

     via ::, Loopback32

L   FE80::/10 [0/0]

     via ::, Null0

S   FEC0::1:0/112 [1/0]

     via 2002:AC10:C01:1::1

C   FEC0::3:0/112 [0/0]

     via ::, Loopback0

L   FEC0::3:1/128 [0/0]

     via ::, Loopback0

L   FF00::/8 [0/0]

     via ::, Null0

--------------------------

Enabling IPv4 EIGRP routing as follows;

router eigrp 1

 network 10.0.0.0

 network 172.16.0.0

 no auto-summary
